Wuerth Proteus/Ophelia III
The contact at Würth is:
Wuerth Electronic Tianjin Co., Ltd.
E-mail: eiSos-china@we-online.com
Tel.: +86 22 2385 8666
or
Wurth Electronics (Shenyang) Co., Ltd.
E-mail: eiSos-shenyang@we-online.com
Tel.: +86 24 298 777 00
or
Email: info@wuerth.com

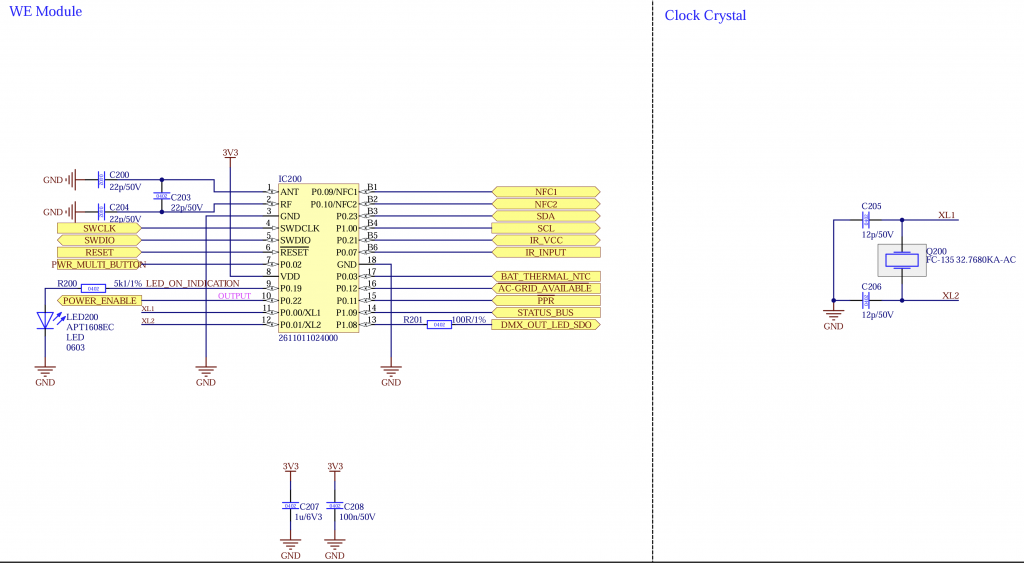

The following circuit shows a example implementation for the Würth Proteus III / Orphelia III Module. Each pin and its functionality is described in the table below.
请不要更改元件和数值。请确保 +3.3V_Mesh 电源稳定，且最小供电能力为 20 mA。
请确保电容尽可能靠近 controller 连接。
| Pin | 说明 | 必需 | 功能 | 用途 | 接线 |
| P1.00 | SCL | 否 | 用于 motion 和 battery controller 等 peripherals 的 I2C Clock | | Pull Up (4k7) |
| P0.23 | SDA | 否 | 用于 motion 和 battery controller 等 peripherals 的 I2C Data | | Pull Up (4k7) |
| P0.07 | IR_INPUT | 否 | IR Sensor Input for IR Remote | | |
| P0.22 | POWER_ENABLE | 是 | 开启/关闭正常运行所需组件的电源，例如 LED Driver、additional controller、Motor driver 等。用于确保 sleep 时电流消耗尽可能低 | | Pull Down (100k) |
| P0.02 | PWR_MULTI_BUTTON | 是 | 开启/关闭 fixture 并解除链接 | | |
| P0.18 | RESET | 是 | SWD Programming | – | – |
| P0.19 | STATUS_LED | 否 | 状态指示 LED | – | – |
| P1.09 | STATUS | 否 | UART RX for receiving additional information like battery state, etc.. You can find additional information under STATUS Interface | – | – |
| P1.08 | DMX/LEDSDI | 是 | DMX Stream / Different control protocoll depending on configuration | – | – |
| P0.21 | IR_VCC | 否 | IR Sensor 的可切换供电电压 (Needed for IR Remote) | – | – |
| P0.09 | NFC1 | 否 | NFC Antenna | – | – |
| P0.10 | NFC2 | 否 | NFC Antenna | – | – |
| P0.12 | CHG | 否 | Battery Management 电池管理: Charging indication Input | Low: Charging High: No charging | |
| P0.11 | PPR | 否 | Battery Management 电池管理: Power Presence | Low: Power available High: No power –> battery powered | – |
| P0.03 | BAT_NTC | 否 | Battery Management 电池管理: Battery NTC | Connect NTC 10K using 10K resistor divider | – |
| SWDIO | SWDIO | 是 | SWD Programming Data | – | – |
| SWCLK | SWCLK | 是 | SWD Programming Clock | – | – |
应使用以下组件：
- Wuerth Ophelia III or Proteus III
- Crystal „EPSON FC-135 32.7680KA-AC0“ or „SF32WK32768D91T004“
