The Vision DMX data stream is defined as the following:

data[0]	data[1]	data[2]	data[3]	...	data[512]
Vision Control Behavior	dmx[1]	dmx[2]	dmx[3]	...	dmx[512]

Vision Control Behavior = 0 -> DMX Control.

When Vision Control Behavior is set to 0, the fixture shall behave like it is controlled by a normal DMX stream.
The fixture shall use the currently selected DMX settings, including for example:

• DMX mode
• DMX start address
• fixture configuration
• color mixing settings
• other user-selected fixture settings

In this mode, the behavior shall be identical to normal DMX operation.

Vision Control Behavior == 255 -> App Control.

The fixture shall use defined App Control behavior according to the Vision DMX Personality Requirement.
In this mode, the fixture shall ignore user-selected DMX settings for the current Vision DMX data stream and instead use fixed, app-optimized default values.
This includes, for example:

• All fixtures of the same type shall behave consistently during app control
• DMX start address shall be 1
• DMX mode shall match the required Vision DMX personality
• color mixing behavior shall be fixed and predictable
• the fixture shall not switch between RGB, RGBW, RGBL, or similar modes based on fixture settings

This is important because fixtures must not behave differently when controlled through the Vision app.
The fixture shall not modify any internal user settings, display settings, saved DMX settings, or settings used by other protocols.
The App Control defaults are only applied internally for the Vision DMX data stream.
RDM shall still report the user-selected fixture settings, not the temporary App Control defaults.

This function is used that the app can control the fixture in a defined state without manipulating the settings of the fixture.

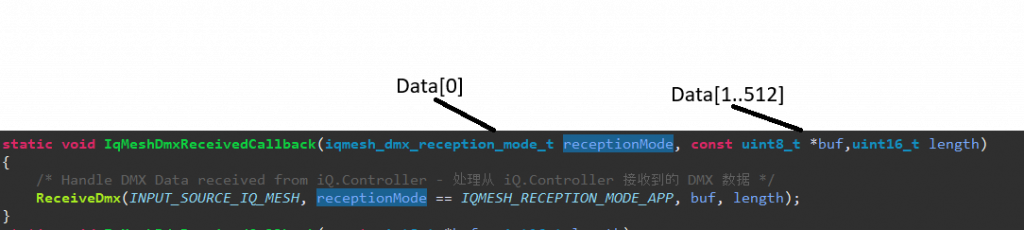

Example using the Vision SPI Library

• Data[0]: Vision Control Behavior
• Data[1-512]: DMX (DMX Data[0..511])

In the example this is already separated:

Example Fixture Implementation:

Personalities of your fixture:

• 1: Simple (Length 5)
• 2: Advanced (Length 10)
• 3: Single Pixel Control (Length 50)
• App Control Personality: (Not exposed in RDM) -> Single Pixel Control (Length 50)

App Control Settings:

Default App Control Settings: Dimmer Curve Linear, Dimmer Speed fast (snap)

Current Example

Selected DMX Address: 10

Selected DMX Personality: 2

Selected Dimmer Curve: Quadratic , Selected Dimmer Speed slow

Behavior:

1. Vision Control Behavior = 0
   1. DMX Data[9] DMX Personality[2]
   1. Dimmer Curve Quadratic, Dimmer Speed slow
2. Vision Control Behavior = 255 -> App Control with fixed App Control defaults
   1. DMX Data[0] DMX Personality[3]
   1. Dimmer Curve Linear, Dimmer Speed fast (snap)
