Fanstel BC833
Fanstel Corporation 联系方式：
Email: sales@fanstel.com

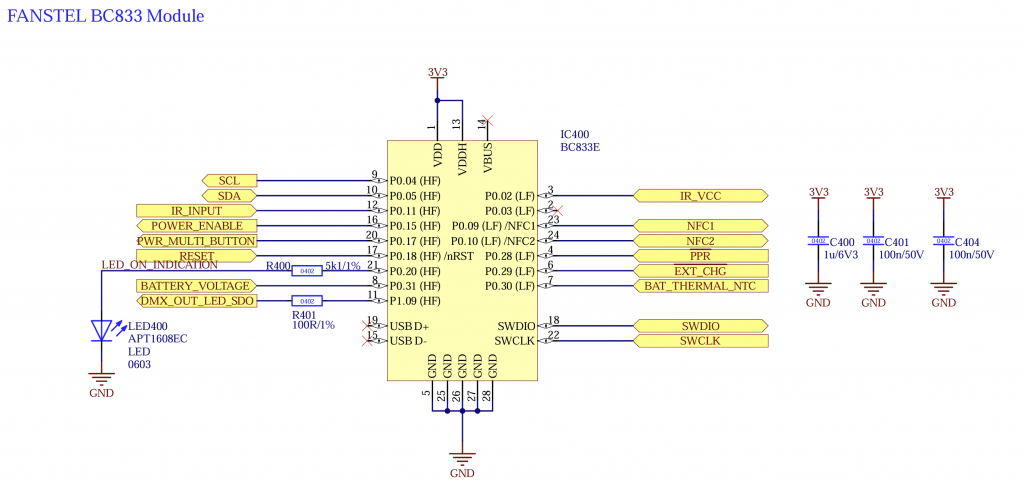

下图显示 Fanstel BC833 Module 的一个示例实现。每个 pin 及其功能在下方表格中说明。
请不要更改元件和数值。请确保 +3.3V_Mesh 电源稳定，且最小供电能力为 20 mA。
请确保电容尽可能靠近 controller 连接。
| Pin | 说明 | 必需 | 功能 | 用途 | 接线 |
| P0.04 | SCL | 否 | 用于 motion 和 battery controller 等 peripherals 的 I2C Clock | Pull Up (4k7) | |
| P0.05 | SDA | 否 | 用于 motion 和 battery controller 等 peripherals 的 I2C Data | Pull Up (4k7) | |
| P0.11 | IR_INPUT | 否 | IR Sensor Input for IR Remote | ||
| P0.15 | POWER_ENABLE | 是 | 开启/关闭正常运行所需组件的电源，例如 LED Driver、additional controller、Motor driver 等。用于确保 sleep 时电流消耗尽可能低 | Pull Down (100k) | |
| P0.17 | PWR_MULTI_BUTTON | 是 | 开启/关闭 fixture 并解除链接 | ||
| P0.18 | RESET | 是 | SWD Programming | – | – |
| P0.20 | STATUS_LED | 否 | 状态指示 LED | – | – |
| P0.31 | STATUS | 否 | UART RX for receiving additional information like battery state, etc.. You can find additional information under STATUS Interface | – | – |
| P1.09 | DMX/LEDSDI | 是 | DMX Stream / Different control protocoll depending on configuration | – | – |
| P0.02 | IR_VCC | 否 | IR Sensor 的可切换供电电压 (Needed for IR Remote) | – | – |
| P0.09 | NFC1 | 否 | NFC Antenna | – | – |
| P0.10 | NFC2 | 否 | NFC Antenna | – | – |
| P0.29 | CHG | 否 | Battery Management 电池管理: Charging indication Input | Low: Charging High: No charging | |
| P0.28 | PPR | 否 | Battery Management 电池管理: Power Presence | Low: Power available High: No power –> battery powered | – |
| P0.30 | BAT_NTC | 否 | Battery Management 电池管理: Battery NTC | Connect NTC 10K using 10K resistor divider | – |
| SWDIO | SWDIO | 是 | SWD Programming Data | – | – |
| SWCLK | SWCLK | 是 | SWD Programming Clock | – | – |
应使用以下组件：
- Fanstel BC833E or BC833M
